NMR Spin Speed Controller

This Spin Speed Controller is capable of stabilizing the spin rate of an air-driven NMR sample tube to a fraction of a Hz, even while the  air pressure drifts or jumps.

The controller measures the rotational rate of the NMR sample twice per second to a precision below 0.1Hz, and then uses a PID algorithm to keep that rate constant indefinitely.

The system includes a PC-based graphical user interface (GUI) to monitor the operation as well as a large front-panel display.

The Spin Speed Controllers designed and built by the IDL are examples of instruments that can operate autonomously or with a PC.

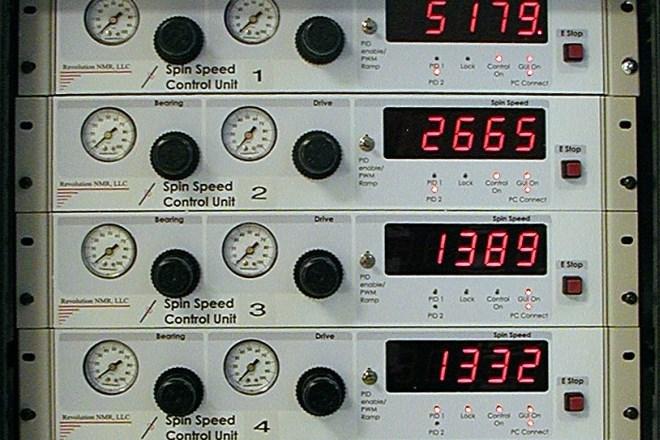

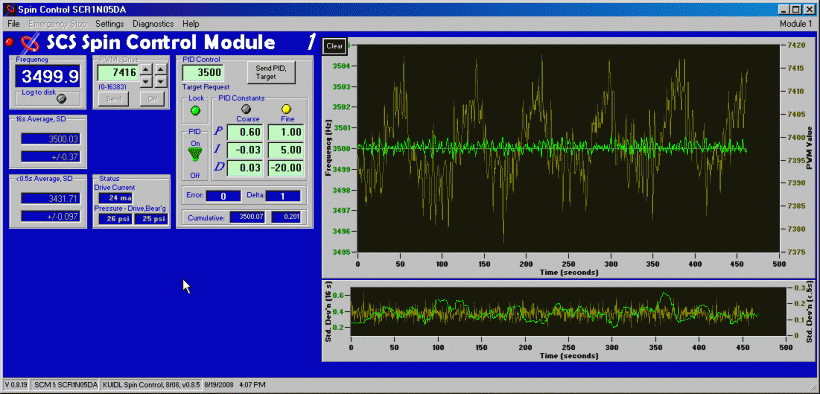

Spin-Speed Control Modules  Graphical User Interface for a Spin Speed Controller.

The valve, under microcontroller control, sets the air flow for precision control of sample spin speed in the NMR.   The Spin-speed Control Module system including 5 Spin-speed modules, motion control and power control with control applications.
